ABS Medical

ABS Medical created for use in the medical field and made using innovative FDM technologies in the room at a controlled temperature, satisfies the need for a material with the highest health certifications, which can be used in medical contexts.



All uploads are encrypted end-to-end
gallery_abs_med_5-1

PROS

  • Certified as a medical device USP 88 class VI
  • Possibility of sterilisation
  • Good temperature resistance
  • Good mechanical strength and ductility

CONS

  • Only available in 'natural' colour to maintain certification
  • Over time, if exposed to UV it can yellow and can be damaged

MAIN FEATURES

  • 3D printing process: FDM
  • Tolerance: 0,6mm<100mm; 0,75%>100mm
  • Max size: 300 x 300 x 400 mm; 11,8 x 11,8 x 15,8 in
  • Lead time: <3 days

COMMENT

ABS Medical is the best and certified choice to lead the innovation of 3D printing in medical and health contexts: it often finds application in the production of prosthetics, medical equipment, tools and specific equipment for personal care

This specific ABS (acrylonitrile-butadiene-styrene) has been made to be compatible for all uses in medical and health settings. Like other ABSs, it has a good mix of mechanical properties, including ductility and temperature resistance.

MATERIAL PROPERTIES

Tensile breaking load 43 MPa
Modulus of elasticity 1400 MPa
Elongation at break 6%
Flexural modulus 76 MPa
HDT 0.45 MPa 81 ºC
Izod impact resistance 16,1 kJ/m²

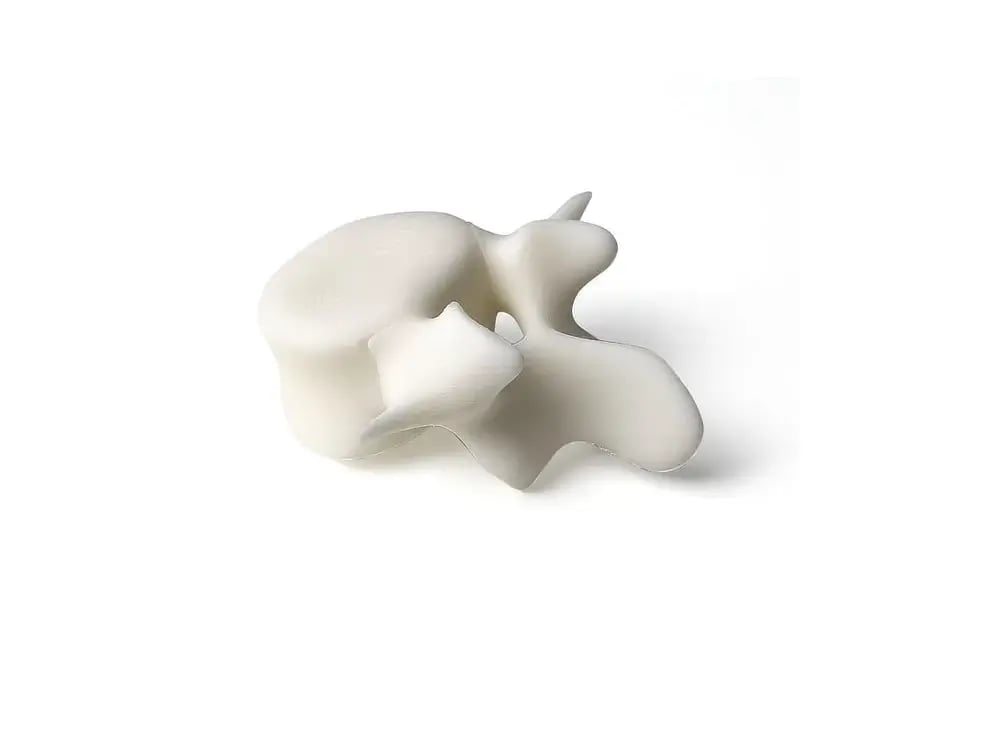

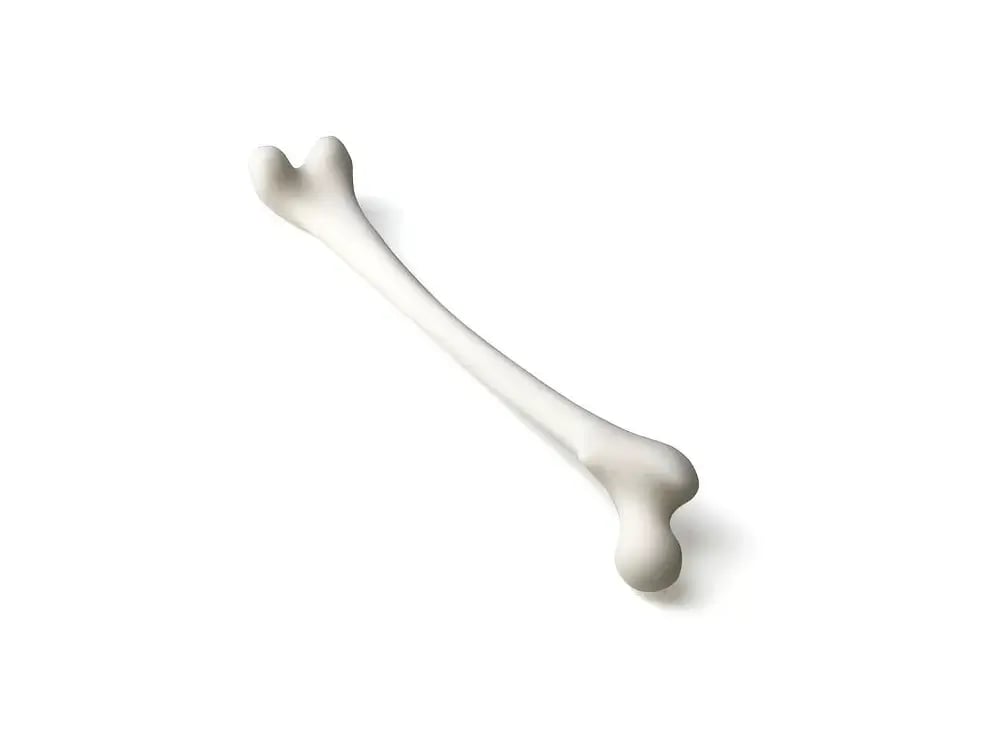

ABS Medical GALLERY
