FDM 3D Printing Materials

Nylon PA12 CF

Carbon Fiber adds properties and metal replacement opportunities.

PROS
Superior rigidity
Lightness
Excellent chemical resistance
Dimensional stability

CONS
Limited geometric complexity
Anisotropic behaviour
Layers can be visible

3D printing process: FDM
Tolerance: < 100mm ± 0,60mm; > 100mm ± 0,75%
Max size: 300x300x300 mm; 11,8x11,8x11,8 in
Lead time: <3 days

PEEK

Excellent mechanical properties and chemical resistance that also remains subject to high temperatures.

PROS
Excellent mechanical performance
Excellent resistance to high temperatures and chemicals
Flame retardant
Best option for Metal Replacement cases

CONS
Non-uniform properties on all axes
Difficult to print
More expensive material than others in 3D printing
Low impact resistance

3D printing process: FDM
Tolerance: <100mm ± 0,60mm; > 100mm ± 0,75%
Max size: 300x300x400 mm; 11,8x11,8x15,8 in
Lead time: <3 days

PEEK CF

PEEK CF is a carbon fibre reinforced composite material that makes it high performance compared to PEEK.

PROS
Outstanding mechanical performance
Excellent resistance to high temperatures and chemicals
Flame retardant
Best option for Metal Replacement practices with challenging performance

CONS
Non-uniform properties on all axes
Difficult to machine
More expensive material than others in 3D printing
Low impact resistance

3D printing process: FDM
Tolerance: 0.6mm<100mm; 0.75%>100mm
Max size: 300x300x400 mm; 11.8x11.8x15.8 in
Lead time: <4 days

ASA

Ideal for outdoor applications

PROS
UV Resistance
Mechanical Durability
All-Weather Performance

CONS
Finish Quality
Limited Chemical Resistance
Limited Temperature Resistance

3D printing process: FDM
Tolerances: ± 0,60mm < 100mm; ± 0,75% > 100mm
Max size: 300x300x300 mm; 11,8x11,8x11,8 in
Lead time: <3 days

POLYCARBONATE

Versatile, robust, and heat-resistant material

PROS
Rigidity
Durability
Toughness
High layer adhesion - almost isotropic

CONS
UV sensitive
Printed with breakaway supports
Black finish sensitive to fingerprints

3D Printing process: FDM
Tolerance: < 100mm ± 0,60mm; > 100mm ± 0,75%
Max size: 300x300x300 mm; 11,8x11,8x11,8 in
Lead time: <3 days

ECOTECH

It is designed for green and high-performance applications

PROS
Excellent stability
Odourless, food-safe and FDA approved
Biodegradable according to DIN EN ISO 14855

CONS
Low elongation at break
Gray color is not FDA certified

3D printing process: FDM
Tolerance: ±0,60mm < 100mm ; ±0,75% > 100mm
Max size: 300x300x300 mm; 11,8x11,8x11,8 in
Lead Time: <3 days

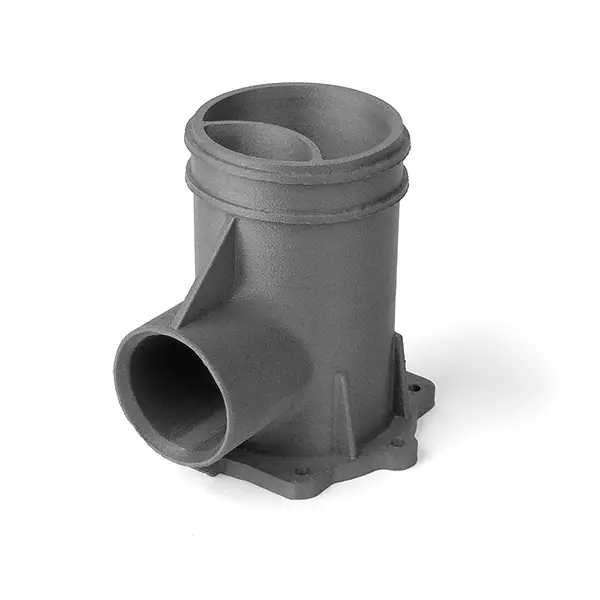

PPS CF

The addition of carbon fibres enhances its mechanical strength and dimensional accuracy while reducing shrinkage and deformation.

PROS
Chemically resistant
Excellent thermal stability
Rigid and lightweight
Inherently flame retardant (UL94 HB)
Compliant with REACH and RoHS regulations

CONS
Not rated UL94 V-0
Difficult to print
Moderate impact toughness

3D Printing process: FDM
Tolerance: ± 0,60mm < 100mm; ± 0,75% > 100mm
Max size: 300 x 300 x 300 mm ; 11.8 x 11.8 x 11.8 in
Lead time: <3 days

Nylon PA6 CF

PA6 enhanced by Carbon Fiber.

PROS
More flexible than PA12 CF
Higher elongation at break
Lightness
Excellent chemical resistance
Dimensional stability

CONS
Difficult to paint
Layers can be visible

3D printing process: FDM
Tolerance: < 100mm ± 0,60mm; > 100mm ± 0,75%
Max size: 300x300x300 mm; 11,8x11,8x11,8 in
Lead time: <3 days

Wood

An environmentally sustainable material, the result of combining bioplastics with a selected wood filler.

PRO
Wood-like surface finish
Biodegradable
Good compressive strength properties

CONTRO
Low thermal resistance
Fragility
More pronounced limitations regarding minimum thicknesses

3D printing process: FDM
Tolerance: ±0,60mm < 100mm ; ±0,6% > 100mm
Max size: 300x300x300 mm; 11,8x11,8x11,8 in
Lead time: <3 days

PETG ESD

Antistatic plastic with carbon nanotubes, ideal for electronics and ATEX environments.

PROS
Antistatic properties
Good resistance to oils and greases
Good impact resistance

CONS
Limited heat resistance
Higher cost compared to unfilled PETG

3D Printing process: FDM
Tolerances: 0,6mm<100mm; 0,6%>100mm
Max size: 300x300x300 mm; 11,8x11,8x11,8 in
Lead time: <3 days

ULTEM™ PEI 9085

A versatile polymer for high-performance industries.

PROS
Resistance to high temperatures and chemical agents
Certified to UL94-V0, EN45545, FAR25.853 and OSU55/55
Good strength-to-weight ratio
Excellent FST properties

CONS
Expensive
Break-away supports only
Limited colours

3D Printing process: FDM
Tolerance: < 100mm ± 0,60mm; > 100mm ± 0,75%
Max size: 600 x 400 x 400 mm; 23,6 x 15,8 x 15,8 in
Lead time: <3 days
